Field Reference Sheets
Quick Guideline Reference Sheets
Common Injection Grouting and Concrete Waterproofing Applications
SealBoss has published four practical field reference sheets to support contractors, applicators, engineers, waterproofing professionals, and facility maintenance teams with common injection grouting and leak-sealing applications.
These reference sheets are designed as quick visual guides for selected application conditions, including drilling layout, packer positioning, injection sequencing, and general field orientation.
They are not intended to replace the comprehensive technical information available. Detailed product data, system information, application guidance, technical documents, videos, and supporting resources are available online at sealboss.com.
SealBoss encourages contractors and specifiers to use the website search function to locate additional product information, application details, technical data sheets, safety data sheets, equipment information, and related grouting resources.
New Field Reference Sheets Available
Crack Injection Drilling Guideline
The SealBoss Crack Injection Drilling Guideline is a quick reference sheet showing typical angled drilling concepts for crack injection work.
The illustration helps demonstrate how angled drill holes can be used to intersect a crack inside the concrete element, supporting improved grout penetration and material travel along the crack.
This reference sheet also shows a typical staggered injection-hole layout and a bottom-to-top injection sequence for vertical cracks.
Grouting Floor-to-Wall Joints Guideline
The SealBoss Grouting Floor-to-Wall Joints Guideline is a visual field reference for slab-to-wall joint injection conditions.
This type of detail is commonly encountered in below-grade structures, containment areas, basements, tanks, utility structures, and other concrete assemblies where water migration may occur at the wall/slab interface.
The reference sheet includes basic drilling angle concepts, packer placement orientation, port spacing notes, pre-wetting considerations, and injection observations such as port-to-port material travel.

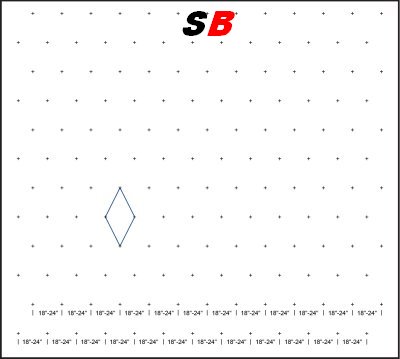

Curtain Grouting Layout Plan Guideline
The SealBoss Curtain Grouting Layout Plan Guideline is a layout reference sheet for curtain grouting applications.
Curtain grouting is often used when water intrusion must be addressed from the negative side of a structure by creating a grout barrier behind or within the concrete element.
The sheet illustrates a grid-style drilling pattern that can assist with planning injection points and organizing the work area before grouting begins.
Sealing Annular Spaces Around Pipes or Conduits Guideline
The SealBoss Sealing Annular Spaces Around Pipes or Conduits Guideline is a field reference sheet for pipe penetrations, conduit penetrations, and similar annular-space leak-sealing conditions.

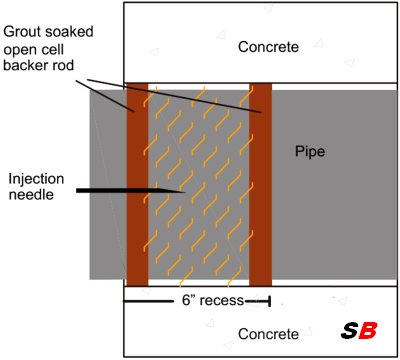

The sheet outlines a basic workflow using saturated oakum or open-cell backer rod, followed by polyurethane grout injection behind the packing material.

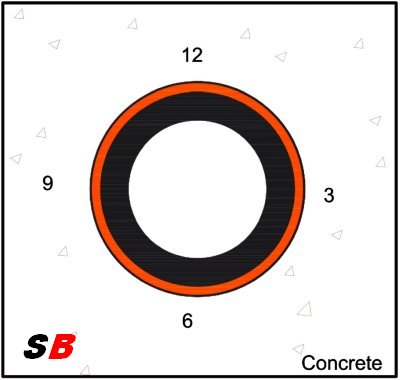

It also includes injection-position references around the pipe, observation-point concepts, equipment notes, and pump loading and cleanup guidance.
Button:
View Annular Space Sealing Reference Sheet
More Technical Information Is Available Online
These SealBoss reference sheets are intended as practical jobsite orientation tools. They can support planning, crew communication, application discussions, and project documentation for concrete crack injection, joint grouting, curtain grouting, and annular-space sealing.
For complete product information and application support, users should explore the broader SealBoss online resource library.
Use the SealBoss website menu and search function to find additional information on:
Injection grouts
Injection packers
Accessories
Injection pumps
Videos
Comprehensive Technical Information
